Fits N20B20 2.0L Turbo Petrol engines only.
Not Fit: N51 / N52 / N54 / N55 / B48 / B Series engines, all diesel engines

⚠️ IMPORTANT: Two versions are NOT interchangeable.

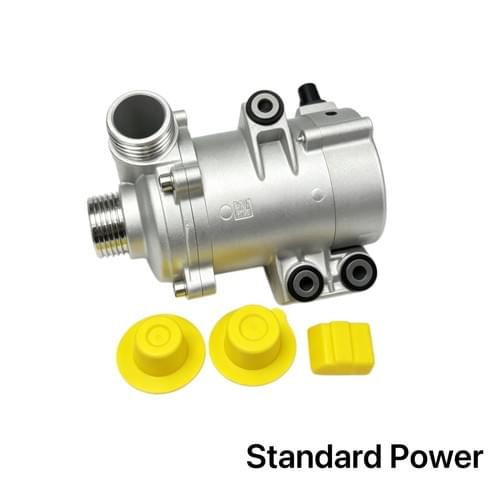

Option 1: Standard Power | Flat Rectangular Plug
Reference Part Number: 11517597715
Replaces original part number: 11515A81BE9
135kW standard output, flat / rectangular connector.

Compatible Vehicles:
1 Series: F20 / F21 (2012–2015) 125i
2 Series: F22 / F23 (2014–2017) 220i
3 Series: F30 / F31 / F34 (2012–2018) 320i
4 Series: F32 / F33 / F36 (2013–2017) 420i
5 Series: F10 / F11 (2013–2016) 520i
X1: E84 (2012–2015) sDrive20i, xDrive20i
X3: F25 (2012–2017) sDrive20i, xDrive20i
X4: F26 (2014–2018) xDrive20i
Z4: E89 (2012–2016) sDrive20i

Option 2: High Output | Square Plug
Reference Part Number: 11517604027
180kW high output, 400W, square connector.

Compatible Vehicles:
2 Series: F22 / F23 (2014–2017) 228i
3 Series: F30 / F31 / F34 (2012–2018) 328i
4 Series: F32 / F33 / F36 (2013–2017) 428i
5 Series GT: F07 LCI (2013–2017) 528i
5 Series: F10 / F11 (2013–2016) 528i
X1: E84 (2012–2015) xDrive28i
X3: F25 (2012–2017) xDrive28i
X4: F26 (2014–2018) xDrive28i
X5: F15 (2015–2018) xDrive28i
X6: F16 (2015–2018) xDrive28i
